FEATURES & BENEFITS OF THE EVOMAX 2

Evomax 2 features updated controls including a new cascade control option and a built in non-return valve within its evolved aesthetic design. It also has improved access for even easier maintenance and a lift weight reduced by up to 10%.

Accompanying Evomax 2 are new Brazed Plate Heat Exchangers, designed especially for multiple boiler cascades. Evomax 2 cascades can now produce outputs of up to 900kW.

As well as these improvements, Evomax 2 is designed and built in the UK for the UK market.

  • FREE COMMISSIONING
  • Robust cast aluminium silicon alloy heat exchanger
  • NOx <40mg/kWh (Class 6) for all natural gas models
  • High 5:1 turndown
  • Up to 99.6% full load efficiency
  • Up to 110% part load efficiency
  • Dynamic control menu set up
  • Cascade controls option
  • Easy servicing; 3 sides removable
  • Built in, serviceable flue Non-Return Valve
  • Lift weight reduced by up to 10% compared with Evomax
  • Capable of operating at up to 30° Δ T
  • Exactly the same compact footprint as Evomax, allowing for easy like for like replacement

*5 year warranty subject to terms and conditions. 5 years parts and labour warranty available subject to being commissioned by Ideal Boilers.

  • Badge Com British Manufacturing BRITISH MANUFACTURING
  • Badge Com Wall Hung WALL HUNG
  • Badge Com Erp ErP COMPLIANT
  • Badge Com Nox NOx CLASS 6
  • Badge Com Bim BIM
  • Badge Com 5Yr Warranty 5 YEAR WARRANTY
  • Badge Com Flueing Options FLUEING OPTIONS

Optional Kits

  • Multi boiler frame & header kits
  • Varican Module Master kit
  • Varican Module Slave kit
  • Extension Module kit
  • OPENTHERM Room Control kit
  • Room Sensor kit
  • Tank Sensor kit
  • Outside Sensor kit
  • Header Flow Tank Immersion Sensor kit
  • Header Flow Tank Strap On kit
  • Safety Interlock kit
  • 0-10V Pump Control kit
  • Condensate Pump kit

EVOMAX 2 INTERACTIVE 3D MODEL

Want to know how the Ideal Commercial Evomax 2 will look? Click the Play button on the image on the right and you'll be able to see Evomax 2 in fantastic 3D.

Choose the 3D model you would like to view by clicking on one of the three smaller images: Evomax 2, Evomax 2 Standard Height Cascade or Evomax 2 Low Height Cascade.

Simply click and hold the image of our Evomax 2 to spin and move the image around. You can also zoom in and out using the wheel on your mouse if you have one. You can increase the size of the image by clicking on the fullscreen button in the bottom right corner, bringing your Evomax to life from the comfort of your own home or office.

Downloads

Need help with your appliance? Download our guides for more technical information on your appliance.

Related products

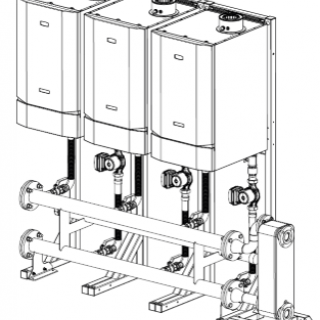

  • Evomax 2 Cascade Cut Out Website Preview
