Features & Benefits

Evomax is available in outputs of 30, 40, 60, 80, 100, 120 and 150kW and is designed to ensure all installation requirements can be achieved. There is also an LPG Evomax range with outputs of 30, 40, 60 and 80kW for off mains installations.

The lightweight design is supported through quality build and aesthetics that allow for the boiler to be installed either on the wall or into a prefabricated floor mounted frame. Optional frame and header kits offer in-line and back-to-back cascade options of up to 6 boilers, with a combined capacity of up to 600kW and provide the option of mounting boilers away from the wall for multiple installations that deliver a higher output.

  • Robust cast aluminium silicon alloy heat exchanger
  • High 5:1 turndown
  • Compact - one width & height for easy siting
  • Qualified for Energy Technology List, allowing full tax relief
  • Designed for easy installation and servicing
  • Simple controls interface with large backlit display
  • Up to 110% part load efficiency
  • NOx <40mg/kWh (Class 5) for all natural gas models
  • 5 year parts and labour warranty*

*5 year warranty subject to terms and conditions. 5 years parts and labour warranty available subject to being commissioned by Ideal Boilers.

  • Badge Com British Manufacturing BRITISH MANUFACTURING
  • Badge Com Wall Hung WALL HUNG
  • Badge Com Erp ErP COMPLIANT
  • Badge Com Nox NOx CLASS 5
  • Badge Com Bim BIM
  • Badge Com 5Yr Warranty 5 YEAR WARRANTY
  • Badge Com Flueing Options FLUEING OPTIONS

Optional Kits

  • Fittings kit
  • Modulating Sequencer kit
  • Multi-Boiler Frame & Header kits
  • Outside sensor kit
  • Programmable Room Thermostat kit
  • Pump kit
  • Room sensor kit
  • Safety Interlock kit
  • Tank sensor kit


Click the Play button on the image on the right and you'll be able to see Evomax in fantastic 3D.

Choose the 3D model you would like to view by clicking on one on the 3 small images: Evomax, Evomax Cascade or Evomax Low Height Cascade. Then click and hold on the boiler to spin and move the image around. You can also zoom in and out using the wheel on your mouse if you have one. You can increase the size of the image by clicking on the Fullscreen button in the bottom right corner.


Need help with your boiler? Download our guides for more technical information on your boiler.

Related products

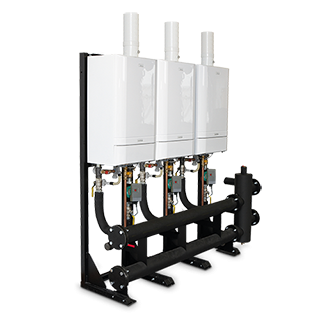

  • Evomax Cascade Preview
