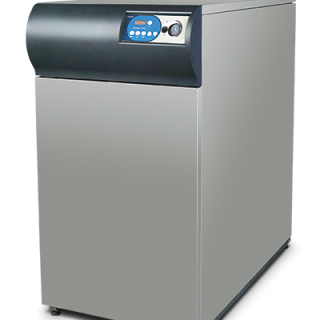

Imax Xtra EL
The Imax Xtra EL range of condensing boilers is made up of 10 models with outputs from 320 to 1240kW
View productFEATURES AND BENEFITS OF THE IMAX XTRA 2 BOILER
- FREE COMMISSIONING
- 5 year Heat Exchanger warranty*
- Robust cast aluminium silicon alloy heat exchanger
- NOx <40mg/kWh (Class 6) on natural gas
- Full colour touchscreen
- Cascade header kits and controls**
- Fitted with wheels for easy installation
- Capable of operating at up to 30°C ΔT
- Up to 97.7% full load efficiency
- Up to 108.2% part load efficiency
- High 5:1 turndown
- Small footprint and fits through standard doorways
*5 year heat exchanger warranty subject to terms and conditions, available below in the Downloads section. 2 year parts and labour warranty as standard.
**Header kits and hydraulic separation accessories are compliant under the SEP (Sound Engineering Practice) category of the Pressure Equipment Directive 97/23/EC (PED).
-
BRITISH MANUFACTURING
-
FLOOR STANDING
-
ErP COMPLIANT
-
NOx CLASS 6
-
BIM
-
5 YEAR HEAT EXCHANGER WARRANTY
-
PED Compliant
Optional Kits
- Multi boiler header kits
- Cascade control kit
- Siemens QAA55 room kit
- Outside sensor kit
- Flow sensor immersion kit
- Flow sensor strap on kit
- Single heating circuit kit
- Dual heating circuit kit
- PWM to 10V pump converter kit
- Condensate pump kit
INTERACTIVE 3D MODEL OF THE IDEAL IMAX XTRA 2
See the Ideal Commercial Imax Xtra 2 floor standing boiler in 3D, so you can see how it will look before it is installed. Simply click the Play button on the image on the right and you'll be able to see Imax Xtra 2.
Click and hold on the boiler to spin and move the image around. You can also zoom in and out using the wheel on your mouse if you have one. You can increase the size of the image by clicking on the full-screen button in the bottom right corner.
