FEATURES AND BENEFITS OF THE IDEAL EVOJET

The Evojet range of condensing pressure jet and blown gas boilers is available in outputs of 150kW, 210kW, 270kW, 350kW, 450kW, 600kW, 800kW, 1000kW, 1250kW, 1450kW and four new models: 1750kW, 2100kW, 2600kW and 3000kW - there is a Pressure Jet condensing boiler for a wide variety of applications.

Floor standing and suitable for applications in either single or multiple configurations.

The Evojet is one of the few condensing commercial pressure jet boilers on the market, complying with ErP efficiency requirements on outputs under 400kW and with the requirements of MCPD for thermal inputs exceeding 1MW.

  • 4 new models: 1750kW, 2100kW, 2600kW and 3000kW
  • 14 models in total with outputs from 150kW to 3000kW
  • Space saving alternative to larger cascades of multiple smaller boilers
  • Floor standing for applications in either single or multiple configurations
  • Building Regulations Part L and MCPD compliant
  • Burner door flame inspection windows
  • Stainless steel heat exchanger
  • 2 year parts and labour warranty
  • Designed to operate up to 40°C ΔT providing minimum flow rates are achieved
  • Natural Gas, LPG, Oil or Dual Fuel
  • Single phase or 3 phase dependent on burner model
  • 6 bar maximum working pressure
  • Up to 109.3% part load efficiency
  • Dedicated low temp return
  • Triple flue pass for high operating efficiencies
  • Twin return water connections
  • High water content
  • Pressurised combustion chamber for smooth burner operation
  • Stainless steel turbulator for maximum heat transfer and increased efficiency
  • Burner options: Modulating or High / Low operation and Low NOx
  • Low NOx burner options - modulating or high / low operation
  • Modulation via 0-10 volt, BMS or RWF
  • Complete with standard control panel
  • Badge Com Floor Standing FLOOR STANDING
  • Badge Com Erp ErP COMPLIANT
  • Badge Com Nox NOx CLASS 5
  • Badge Com Bim BIM
  • Badge Com 2Yr Warranty 2 YEAR WARRANTY
  • Badge Com Pressure Jet PRESSURE JET
  • Badge Com Dual Fuel DUAL FUEL
  • Part L Blue Part L

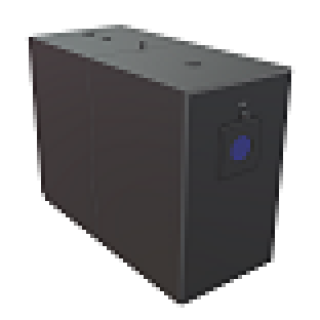

INTERACTIVE 3D MODEL OF THE EVOJET

Discover what the Evojet condensing boiler will look like before it is installed within your commercial property, allowing commercial businesses to see how it will work within the floor plan.  Click the Play button on the image on the right and you'll be able to see Evojet in fantastic 3D.

Click and hold on the boiler to spin and move the image around. You can also zoom in and out using the wheel on your mouse if you have one. You can increase the size of the image by clicking on the full-screen button in the bottom right corner.

Ideal Boilers - Evojet by Bimstore UK on Sketchfab

Downloads

Need help with your appliance? Download our guides for more technical information on your appliance.
